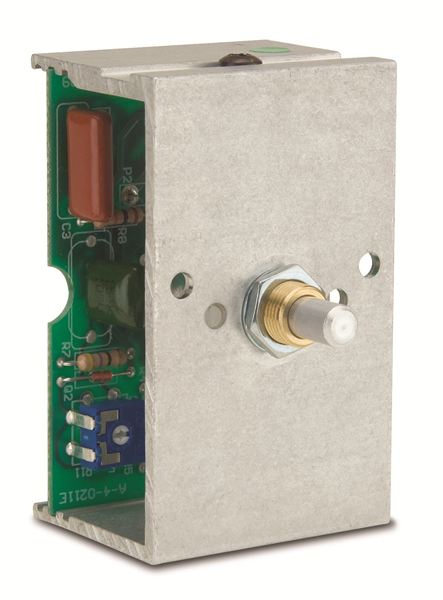

A dependable, economical and compact triac variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load. It is not designed for capacitor start motors.
Unit of Measure

Model Number

 N/A 06269637

Series

 N/A 55AC Series

Style

 N/A Chassis

Input (VAC)

 N/A 120

Output (VAC)

 N/A 0-120

Input Current

 N/A 10 A

Supply Connection

 N/A 0.25" male QC

Output Connection

 N/A 0.25" male QC

Weight

 N/A 5.8 oz164 g

MINO

 N/A 04489X70950

Depth

 N/A 2.20 in55.9 mm

Width

 N/A 2.90 in73.7 mm

Length

 N/A 3.50 in88.9 mm

Features

 N/A
  • Chassis and enclosed (NEMA 1) models
  • Chassis models include mounting hardware
  • Chassis models mount via potentiometer bushing
  • 120 and 240VAC supply models, ± 10%
  • 10A and 15A continuous rated models
  • -10° to +45°C ambient temperature
  • 50/60Hz operation
    •
