55AC Series
AC Drives

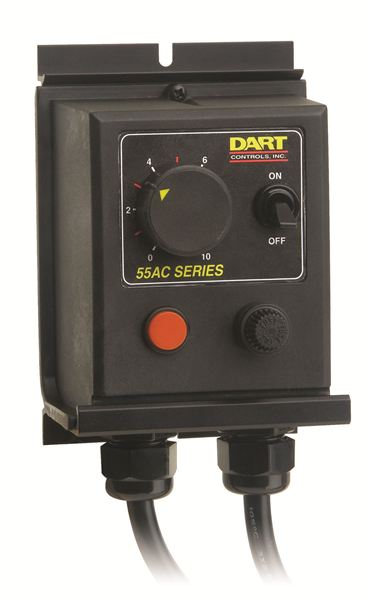

A dependable, economical and compact triac variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load. It is not designed for capacitor start motors.
Item # |
Item Name |
Model Number |
Series |
Style |
Input (VAC) |
Output (VAC) |
Input Current |
Supply Connection |
Output Connection |
|---|---|---|---|---|---|---|---|---|---|
| 55AC10C | N/A CHASSIS TRIAC SGL PHASE MOTOR NOT CAP START 120VAC 10A | Model Number N/A 06269637 | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 10 A | Supply Connection N/A 0.25" male QC | Output Connection N/A 0.25" male QC |
| 55AC10E | N/A ENCLOSED TRIAC SGL PHASE MOTOR NOT CAP START 120VAC 10A | Model Number N/A 04519507 | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 10 A | Supply Connection N/A 2' cord and plug | Output Connection N/A Receptacle |
| 55AC15C | N/A CHASSIS TRIAC SGL PHASE MOTOR NOT CAP START 120VAC 15A | Model Number N/A 06550721 | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 15 A | Supply Connection N/A 0.25" male QC | Output Connection N/A 0.25" male QC |
| 55AC15E | N/A ENCLOSED TRIAC SGL PHASE MOTOR NOT CAP START 120VAC 15A | Model Number N/A 05353069 | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 15 A | Supply Connection N/A 2' cord and plug | Output Connection N/A Receptacle |
| 57AC10C | N/A CHASSIS TRIAC SGL PHASE MOTOR NOT CAP START 240VAC 10A | Model Number N/A 06550724 | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 10 A | Supply Connection N/A 0.25" male QC | Output Connection N/A 0.25" male QC |
| 57AC10E | N/A ENCLOSED TRIAC SGL PHASE MOTOR NOT CAP START 240VAC 10A | Model Number N/A 05609695 | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 10 A | Supply Connection N/A 6' cord and plug | Output Connection N/A 6' cord with plug |
| 57AC15C | N/A CHASSIS TRIAC SGL PHASE MOTOR NOT CAP START 240VAC 15A | Model Number N/A 06550725 | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 15 A | Supply Connection N/A 0.25" male QC | Output Connection N/A 0.25" male QC |
| 57AC15E | N/A ENCLOSED TRIAC SGL PHASE MOTOR NOT CAP START 240VAC 15A | Model Number N/A 06550726 | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 15 A | Supply Connection N/A 6' cord and plug | Output Connection N/A 6' cord with plug |
| 55AC10C-A | N/A 55AC10C-A | Model Number N/A | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 10 A | Supply Connection N/A 0.25 male QC" | Output Connection N/A 0.25 male QC" |
| 55AC10C-D | N/A 55AC10C-D | Model Number N/A | Series N/A 55AC Series | Style N/A Chassis | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 10 A | Supply Connection N/A 0.25 male QC" | Output Connection N/A 0.25 male QC" |
| 55AC10E-D | N/A 55AC10E-D | Model Number N/A | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 10 A | Supply Connection N/A 2' cord and plug | Output Connection N/A Receptacle |
| 55AC15E-D | N/A 55AC15E-D | Model Number N/A | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 120 | Output (VAC) N/A 0-120 | Input Current N/A 15 A | Supply Connection N/A 2' cord and plug | Output Connection N/A Receptacle |
| 57AC15E-D | N/A 57AC15E-D | Model Number N/A | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 15 A | Supply Connection N/A 6' cord and plug | Output Connection N/A 6' cord with plug |
| 57AC10E-D | N/A 57AC10E-D | Model Number N/A | Series N/A 55AC Series | Style N/A Enclosed | Input (VAC) N/A 240 | Output (VAC) N/A 0-240 | Input Current N/A 10 A | Supply Connection N/A 6' cord and plug | Output Connection N/A 6' cord with plug |
