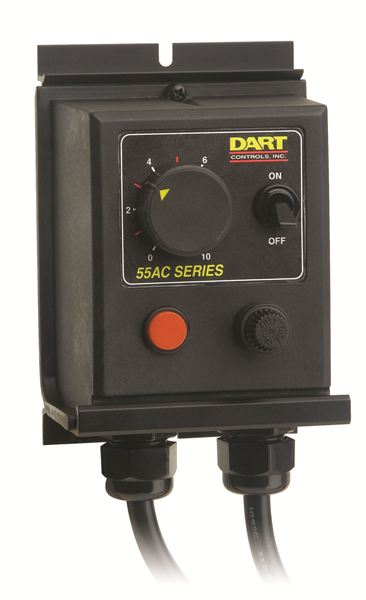

A dependable, economical and compact triac variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load. It is not designed for capacitor start motors.
Unit of Measure

Model Number

 N/A 05353069

Series

 N/A 55AC Series

Style

 N/A Enclosed

Input (VAC)

 N/A 120

Output (VAC)

 N/A 0-120

Input Current

 N/A 15 A

Supply Connection

 N/A 2' cord and plug

Output Connection

 N/A Receptacle

Weight

 N/A 26.56 oz753 g

MINO

 N/A 04489X10011

Depth

 N/A 3.80 in96.5 mm

Width

 N/A 4 in101.6 mm

Length

 N/A 5.53 in140.5 mm

Features

 N/A
  • Chassis and enclosed (NEMA 1) models
  • Chassis models include mounting hardware
  • Chassis models mount via potentiometer bushing
  • 120 and 240VAC supply models, ± 10%
  • 10A and 15A continuous rated models
  • -10° to +45°C ambient temperature
  • 50/60Hz operation
    •
